Use case diagram

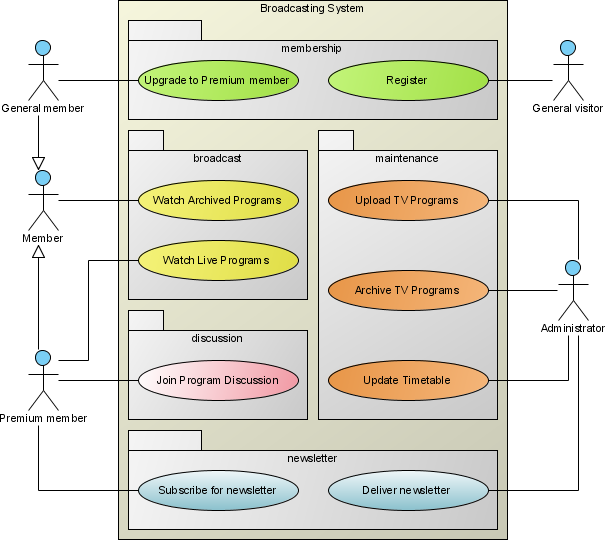

Creating Use Case Diagram for describing the behavior of the target system from an external point of view. Besides drawing the diagram, Visual Paradigm allows you to detail document the requirements through the Use Case Description. All these information can be output into HTML//PDF//MS Word formats.

Use case diagram

Actor

Definition

An Actor models a type of role played by an entity that interacts with the subject (e.g., by exchanging signals and data), but which is external to the subject (i.e., in the sense that an instance of an actor is not a part of the instance of its corresponding subject). Actors may represent roles played by human users, external hardware, or other subjects. Note that an actor does not necessarily represent a specific physical entity but merely a particular facet (i.e., "role") of some entity that is relevant to the specification of its associated use cases. Thus, a single physical instance may play the role of several different actors and, conversely, a given actor may be played by multiple different instances.

Since an actor is external to the subject, it is typically defined in the same classifier or package that incorporates the subject classifier

Properties
Name	The name of actor.
ID	A unique value for identifying the actor.
Complexity	A description of complexity of actor.
Goals	Goals to achieve by actor.
Documentation	Description of actor.
Abstract	If true, the actor does not provide a complete declaration and can typically not be instantiated. An abstract actor is intended to be used by other actors.
Leaf	Indicates whether it is possible to further specialize an actor. If the value is true, then it is not possible to further specialize the actor.
Root	Indicates whether the actor has no ancestors. (true for no ancestors)
Business model	Set it to make the actor become a "business actor"
Attributes	Refers to all of the Properties that are direct (i.e., not inherited or imported) attributes of the actor.
Operations	An operation is a behavioral feature of an actor that specifies the name, type, parameters, and constraints for invoking an associated behavior. Operations here refers to the operations owned by the actor.

Association

Definition

An association specifies a semantic relationship that can occur between typed instances. It has at least two ends represented by properties, each of which is connected to the type of the end. More than one end of the association may have the same type.

An end property of an association that is owned by an end class or that is a navigable owned end of the association indicates that the association is navigable from the opposite ends; otherwise, the association is not navigable from the opposite ends.

Properties
Name	The name of association.
Visibility	Determines where the association appears within different namespaces within the overall model, and its accessibility.
Association End From	The source of association.
Association End To	The target of association.
Documentation	Description of association.
Abstract	If true, the association does not provide a complete declaration and can typically not be instantiated. An abstract association is intended to be used by other associations.
Leaf	Indicates whether it is possible to further specialize an association. If the value is true, then it is not possible to further specialize the association.
Derived	Specifies whether the association is derived from other model elements such as other associations or constraints.

Collaboration

Definition

A collaboration is represented as a kind of classifier and defines a set of cooperating entities to be played by instances (its roles), as well as a set of connectors that define communication paths between the participating instances. The cooperating entities are the properties of the collaboration.

A collaboration specifies a view (or projection) of a set of cooperating classifiers. It describes the required links between instances that play the roles of the collaboration, as well as the features required of the classifiers that specify the participating instances. Several collaborations may describe different projections of the same set of classifiers.

Properties
Name	The name of collaboration.
Visibility	Determines where the collaboration appears within different namespaces within the overall model, and its accessibility.
Documentation	Description of collaboration.
Abstract	If true, the collaboration does not provide a complete declaration and can typically not be instantiated. An abstract collaboration is intended to be used by other collaborations.
Leaf	Indicates whether it is possible to further specialize a collaboration. If the value is true, then it is not possible to further specialize the collaboration.
Root	Indicates whether the collaboration has no ancestors. (true for no ancestors)
Children	The children of collaboration

Constraint

Definition

A condition or restriction expressed in natural language text or in a machine readable language for the purpose of declaring some of the semantics of an element.

Properties
Name	The name of constraint. It is optional and is commonly omitted.
Expression	The condition that must be true when evaluated in order for the constraint to be satisfied.
Documentation	Description of constraint.

Dependency

Definition

A dependency is a relationship that signifies that a single or a set of model elements requires other model elements for their specification or implementation. This means that the complete semantics of the depending elements is either semantically or structurally dependent on the definition of the supplier element(s).

Properties
Name	The name of dependency.
Supplier	The element(s) independent of the client element(s), in the same respect and the same dependency relationship. In some directed dependency relationships (such as Refinement Abstractions), a common convention in the domain of class-based OO software is to put the more abstract element in this role. Despite this convention, users of UML may stipulate a sense of dependency suitable for their domain, which makes a more abstract element dependent on that which is more specific.
Client	The element(s) dependent on the supplier element(s). In some cases (such as a Trace Abstraction) the assignment of direction (that is, the designation of the client element) is at the discretion of the modeler, and is a stipulation.
Visibility	Determines where the dependency appears within different namespaces within the overall model, and its accessibility.
Documentation	Description of dependency.

Extend

Definition

This relationship specifies that the behavior of a use case may be extended by the behavior of another (usually supplementary) use case. The extension takes place at one or more specific extension points defined in the extended use case. Note, however, that the extended use case is defined independently of the extending use case and is meaningful independently of the extending use case. On the other hand, the extending use case typically defines behavior that may not necessarily be meaningful by itself. Instead, the extending use case defines a set of modular behavior increments that augment an execution of the extended use case under specific conditions.

Note that the same extending use case can extend more than one use case. Furthermore, an extending use case may itself be extended.

Properties
Name	The name of extend.
Extension	References the use case that represents the extension and owns the extend relationship.
Extended Case	References the use case that is being extended.
Visibility	Determines where the extend relationship appears within different namespaces within the overall model, and its accessibility.
Extension point	An ordered list of extension points belonging to the extended use case, specifying where the respective behavioral fragments of the extending use case are to be inserted. The first fragment in the extending use case is associated with the first extension point in the list, the second fragment with the second point, and so on. (Note that, in most practical cases, the extending use case has just a single behavior fragment, so that the list of extension points is trivial.)
Condition	References the condition that must hold when the first extension point is reached for the extension to take place. If no constraint is associated with the extend relationship, the extension is unconditional.
Documentation	Description of extend relationship.

Generalization

Definition

A generalization is a taxonomic relationship between a more general classifier and a more specific classifier. Each instance of the specific classifier is also an indirect instance of the general classifier. Thus, the specific classifier inherits the features of the more general classifier.

Properties
Name	The name of generalization.
General	References the general classifier in the Generalization relationship.
Specific	References the specializing classifier in the Generalization relationship.
Visibility	Determines where the generalization relationship appears within different namespaces within the overall model, and its accessibility.
Documentation	Description of generalization relationship.
Substitutable	Indicates whether the specific classifier can be used wherever the general classifier can be used. If true, the execution traces of the specific classifier will be a superset of the execution traces of the general classifier.

Include

Definition

Include is a DirectedRelationship between two use cases, implying that the behavior of the included use case is inserted into the behavior of the including use case. It is also a kind of NamedElement so that it can have a name in the context of its owning use case. The including use case may only depend on the result (value) of the included use case. This value is obtained as a result of the execution of the included use case.

Note that the included use case is not optional, and is always required for the including use case to execute correctly.

Properties
Name	The name of include relationship.
Including Case	References the use case that will include the addition and owns the include relationship.
Addition	References the use case that is to be included.
Visibility	Determines where the include relationship appears within different namespaces within the overall model, and its accessibility.
Documentation	Description of include relationship.

Note

Definition

A note (comment) gives the ability to attach various remarks to elements. A comment carries no semantic force, but may contain information that is useful to a modeler.

Properties
Name	The name of note.
Documentation	Specifies a string that is the comment.

Realization

Definition

Realization is a specialized abstraction relationship between two sets of model elements, one representing a specification (the supplier) and the other represents an implementation of the latter (the client). Realization can be used to model stepwise refinement, optimizations, transformations, templates, model synthesis, framework composition, etc.

Properties
Name	The name of realization relationship.
Supplier	The element(s) independent of the client element(s), in the same respect and the same dependency relationship. In some directed dependency relationships (such as Refinement Abstractions), a common convention in the domain of class-based OO software is to put the more abstract element in this role. Despite this convention, users of UML may stipulate a sense of dependency suitable for their domain, which makes a more abstract element dependent on that which is more specific.
Client	The element(s) dependent on the supplier element(s). In some cases (such as a Trace Abstraction) the assignment of direction (that is, the designation of the client element) is at the discretion of the modeler, and is a stipulation.
Visibility	Determines where the realization relationship appears within different namespaces within the overall model, and its accessibility.
Mapping	A composition of an Expression that states the abstraction relationship between the supplier and the client. In some cases, such as Derivation, it is usually formal and unidirectional. In other cases, such as Trace, it is usually informal and bidirectional. The mapping expression is optional and may be omitted if the precise relationship between the elements is not specified.
Documentation	Description of realization relationship.

System

Definition

If a subject (or system boundary) is displayed, the use case ellipse is visually located inside the system boundary rectangle. Note that this does not necessarily mean that the subject classifier owns the contained use cases, but merely that the use case applies to that classifier

Properties
Name	The name of system.
Documentation	Description of system.
Abstract	If true, the system does not provide a complete declaration and can typically not be instantiated. An abstract system is intended to be used by other systems.
Leaf	Indicates whether it is possible to further specialize a system. If the value is true, then it is not possible to further specialize the system.
Root	Indicates whether the system has no ancestors. (true for no ancestors)
Children	The use cases in the system.

Definition of notations is quoted from Object Management Group Unified Modeling Language (OMG UML) Superstructure Version 2.2 and former versions (for notations that do not exist anymore in latest specification).
